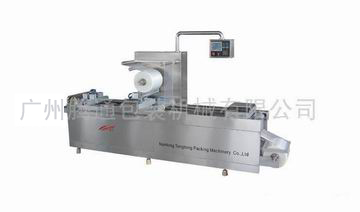

DLZ-320 Automatic thermoform-vacuum packing machine could thermoform the shape as packing requirements.Then stuffing the product into the shaped below film chamber,vacuum or inflation during the sealing box,the above&below film heating-sealing,the lateral&vertical knife divide the product into the unit one package and unloading.The scrap collector ingether the film scrap.
The five parts compose the automatic thermoform-vacuum packing machine.the film feeding part,the below film forming part,the stuffing area,the vacuum&inflation,the lateral&vertical,unloading area and the scrap collector.
The application of the automatic thermoform-vacuum packing machine: refrigeration meat, meat product,beancurd product, sea food, medicine, medical appliance, electronic components,hardwares etc..
Main technical parameter:
| Sealing length size（L×W） |
300×240mm |
| Above film width |
320±1mm |
| Above film thickness |
～0.08mm |
| Below film width |
360±1mm |
| Below film thickness |
～0.2～0.22mm |
| Maximum diameter |
Φ300mm |
| Pumping rate |
100m3/h |
| Pump ultimate pressure |
50pa |
| Compress air pressure |
0.5～0.9Mpa |
| Pneumatic consuming volume |
～30L/min |
| Power supply |
AC380V 50Hz 3Phase |
| Total power |
～11kw |
| Total weight |
～900kg |
| Dimentions |
3700×850×1900mm |
